| AL - ELECTRIC MELTING FURNACE |
| The manufacturer of electro-magnetic and thermoelectric furnaces specializes in melting, and is the leading manufacturer of heat furnaces. |
|
|
| |
|
| |

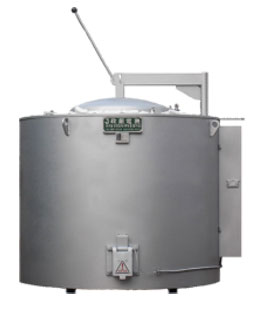

| AL - ELECTRIC CRUCIBLE / MELTING & HOLDING FURNACE |
| |
|
| |
| ◎ Equipment overview |
|
- It is designed and manufactured to be used for the combined use of graphite crucible and cast iron crucible.
- The fixed position of HEATER is adjusted appropriately to design and manufacture the upper temperature management efficiently.

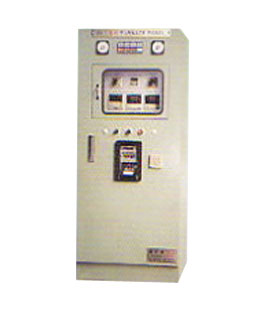

- The controller is SCR proportional control and displays the internal temperature and the molten temperature of the road.
- The emergency door sensor detects the first leak of the fumes caused by the crucible cracks and informs you of the abnormality. |
|
| |
| ◎ SPECIFICATIONS |
| MODEL |
CAPACITY
kg(AL/CH) |
FURNACE SIZE
φ×H |
POWER
kw |
CRUCIBLE |
TEMPERATURE
℃ |
REMARK |
MODEL |
φ×H |
| JE-200 |
200 |
1350x1054 |
40 |
JR590 |
630x630 |
650-700℃
(MAX 1000℃) |
|
| JE-300 |
300 |
1350x1054 |
50 |
JR610 |
630x700 |
|
| JE-400 |
400 |
1500x1054 |
75 |
FR700 |
722x690 |
|
| JE-500 |
500 |
1500x1154 |
85 |
NR1000 |
780x750 |
|
| JE-650 |
650 |
1630x1256 |
100 |
BR1500 |
855x850 |
|
| JE-800 |
800 |
1630x1356 |
130 |
BR1800 |
855x970 |
|
| JE-1000 |
1000 |
1630x1456 |
130 |
BM800-H4 |
880x1110 |
|
| JE-1200 |
1200 |
1730x1456 |
150 |
BU800-H4 |
950x1100 |
|
|
| |
