Home > Product > Heat treatment furnace > Rotation type furnace
Heat treatment furnace

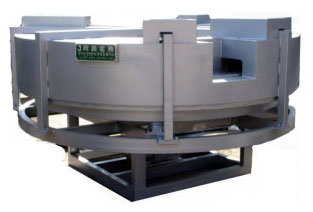

ROTATION TYPE FURNACE
The manufacturer of electro-magnetic and thermoelectric furnaces specializes in melting, and is the leading manufacturer of heat furnaces.




◎ SPECIFICATIONS
MODEL UNIT RF1200 RF1500 RF1800 RF2000
WORK SIZE WxH 200 x 200 x 250 250 x 250 x 300 300 x 300 x 400 350 x 350 x 400
WORK CENTER PCD Φ1200 Φ1500 Φ1800 Φ2000
FURNACE SIZE WxLxH Φ1700 x H1800 Φ2000 x H2100 Φ2400 x H2270 Φ2600 x H2270
TABLE ROTATION RPM 0.15 ~ 1.5 0.15 ~ 1.5 0.15 ~ 1.5 0.15 ~ 1.5
HEATER CAPA. kw 40kw 60kw 80kw 100kw
TEMPERATURE ℃ 650-700℃ (MAX 800℃)
